Floor Mounted Bolt Down Swivel Jury Arm Chair

Floor Mounted Bolt Down Swivel Jury Arm Chairs are made of OAK wood species in the United States.

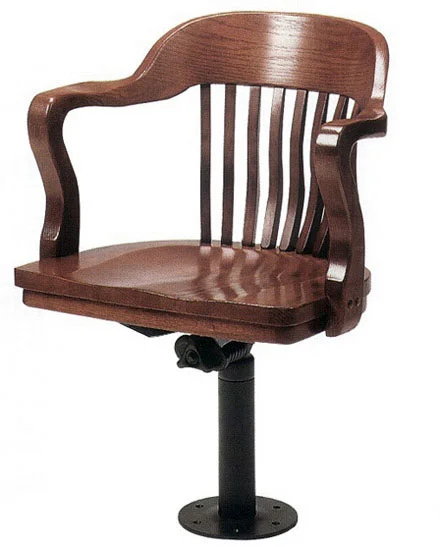

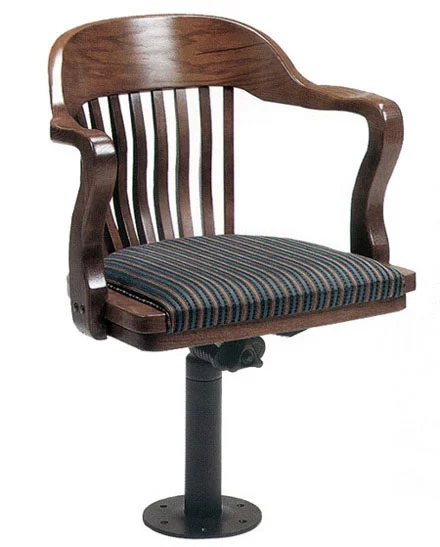

Bolt Down Oak Jury Swivel Arm Chair with Optional Upholstery Bolt Down Oak Jury Swivel Arm Chair with Standard Wood Seat

# 5980BD Bolt Down Jury Swivel Arm Chair
Overall Dimensions 23 1/4" Wide X 22" Deep X 32" To 35" High
Seat: W. 19 1/4" X 17 1/2" Deep
Seat Height: Adjustable Seat Height Range Of Approx. 3". 16" to 19"
Weight Approx. 36 lbs.

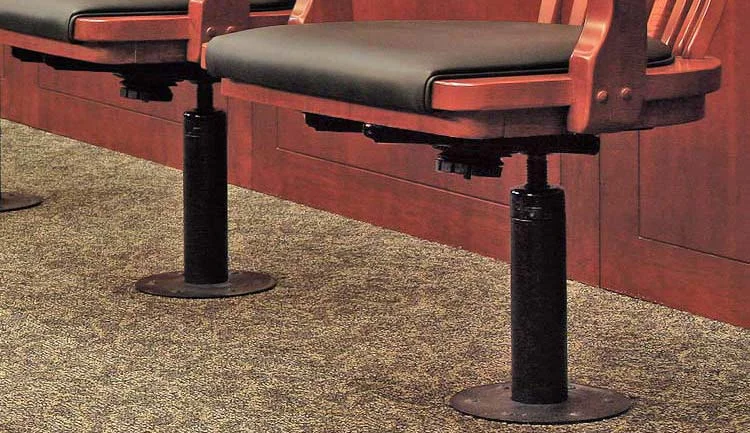

Bolt Down Oak Jury Swivel Arm Chair - Base Detail

Bolt down base consists of an all plate steel flange base bottom with a diameter of 8".
Base bottom has six equally spaced bolt anchor holes 5/16" diameter.
The steel tube assembly consists of a 2 1/2" diameter drawn steel tube.

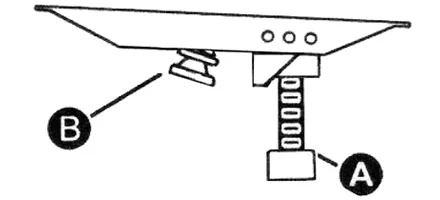

A. Seat Height - Turn handwheel clockwise to raise seat
Oak Schoolhouse Swivel Chair Swivel and Adjustment Drawing
B. Tilt Tension Regulator - Turn handwheel clockwise to increase tension.

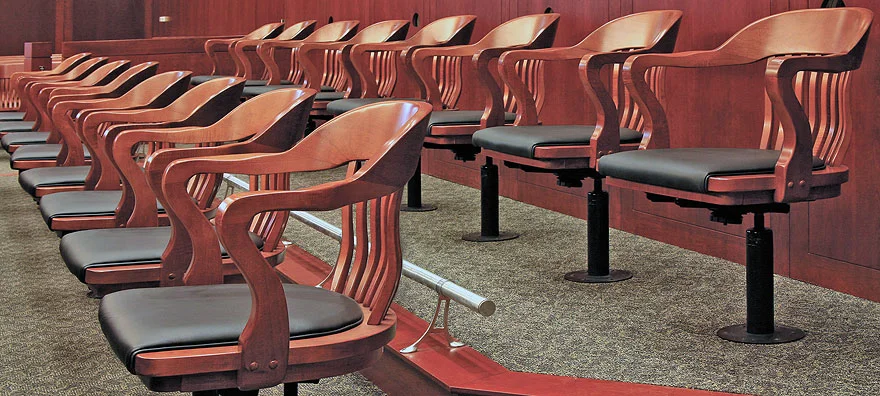

Bolt Down Oak Jury Swivel Arm Chair Installation

Oak Bolt Down Jury Swivel Arm Chairs Available
In Natural Clear On Oak, Golden Oak, Medium Oak, Walnut On Oak,
Mahogany On Oak, and Cherry Stain On Oak

Natural Clear Finish On Oak Wood Species Golden Oak Stain On Oak Wood Species Medium Oak Stain On Oak Wood Species Walnut Stain On Oak Wood Species
Mahogany Stain On Oak Wood Species Cherry Stain On Oak Wood Species

Oak Schoolhouse Chairs Also Available Finished In Premium Opaque Solid Colors
Special Solid Color Sections For Oak Chairs
Oak Jury Chairs Solid Colors

If you are doing critical color matching please request free wood stain samples.
