Trapezoid Ladderback Fast Food Counter Stools

THE ONLY PLACE TO SIT in the 21st Century Fast Food Restaurant. This is a thoughtfully designed and engineered steel ladderback counter stool with deluxe details like steel finial caps rather than the usual plastic.
Our floor mounted Ladderback design counter stools feature heavy duty made in U.S.A. commercial construction. Available with upholstered and beech veneer chair seats. The fountain stools below are made in standard seat heights of approx. 18", 25" and 30".
The 18" seat height is for 30" table height. The 25" seat height is for counters 36" high. ( A built-in step or footrail at the counter is recommended for the 25" seat height stool). The 30" seat height is for standard bar height which is 42".
Please request a quotation if you are considering a large order.

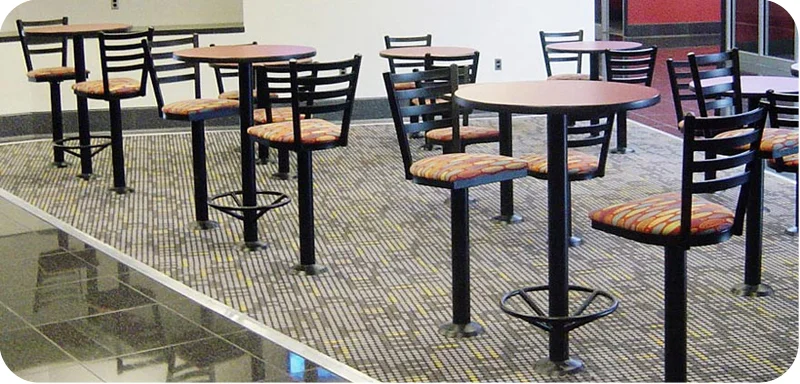

Trapezoid Ladderback Bolt Down Counter Stool Installation

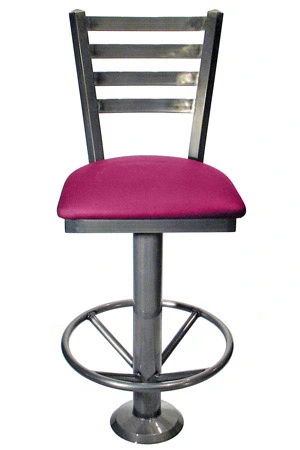

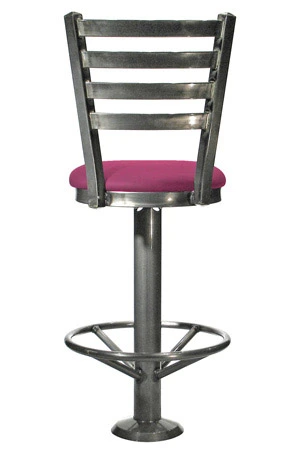

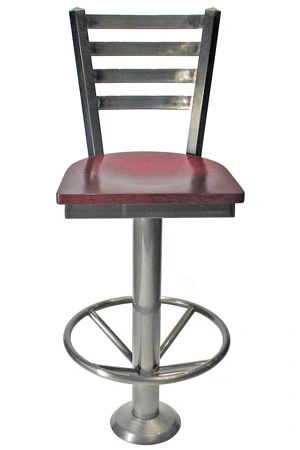

Trapezoid Ladderback Bolt Down Counter Stool Upholstered Seat Trapezoid Ladderback Bolt Down Counter Stool Upholstered Seat Rear View Trapezoid Ladderback Bolt Down Counter Stool Wood Seat

#501CST Trapezoid Ladderback Fast Food Counter Stools
Available with Upholstered Seats and Beech Veneer Seats.
Seat is approx. 17" Wide X 16" Deep
Steel Column is 3" Diameter
Steel Bottom is 6 1/2" Diameter X 1/4" Thick with four 1/2" holes for floor attachment.
( Floor attachment anchors not provided )
Stool is equipped with a spring return swivel.

8" Diameter Steel Escutcheon Cover Included.
19" Diameter Footrest option available.

Stool base and chair head frame finish available in many Standard Colors
including Clear Coat finish which reveals welding and burnishing marks on the steel frame.

Trapezoid Ladderback Soda Fountain Stool Upholstered Seat Option #501CST-U Trapezoid Ladderback Standard Upholstered Seat Pricing:
2 - 6 $315 each | 7 - 10 $304 each | 11 + Call for quantity quote!

Trapezoid Ladderback Soda Fountain Stool Wood Seat Option #501CST-W Trapezoid Ladderback Beech Veneer Seat Pricing:
2 - 6 $315 each | 7 - 10 $304 each | 11 + Call for quantity quote!

Footrest Option Add $40
Specify 18", 25", 30" Seat Height. Upholstered Seats May Add Slightly To Specified Height.

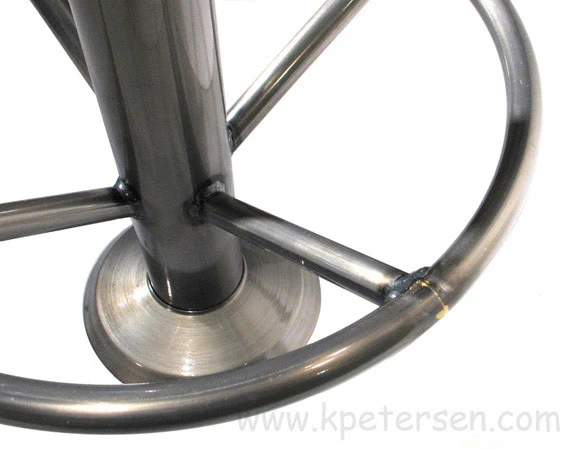

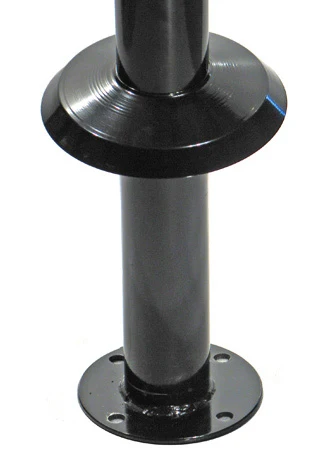

Soda Fountain Counter Stool Footrest Detail Soda Fountain Counter Stool Escutcheon Cover Detail
Counter Stool 19" Diam. Welded Footrest and 8" Diam. Sliding Escutcheon Cover Details.
Bolt-Down Soda Fountain Base Floor Attachment Drawing
Base Floor Attachment Drawing.

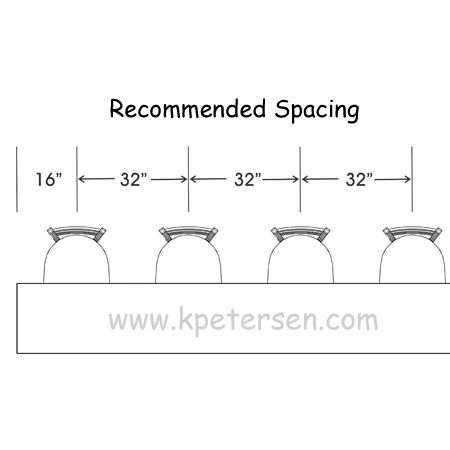

Trapezoid Ladderback Soda Fountain Counter Stool Recommended Spacing Trapezoid Ladderback Soda Fountain Counter Stool 30 Inch Seat Height with Footrest
We Suggest Center To Center Dimensions Of 32" Especially When Using 19" Diam. Footrests

Standard Wood Seat Finishes
Natural Clear Finish On Beech Wood Species Mahogany Stain On Beech Wood Species Walnut Stain On Beech Wood Species Black On Beech Wood Species

058 Dark Eggplant Vinyl 740 Cappuccino Vinyl 684 Leather Vinyl 660 Chestnut Vinyl
304 Navy Blue Vinyl 212 Apple Green Vinyl 211 Eggshell Vinyl 210 Taupe Vinyl
200 Aqua Vinyl 190 Butterscotch Vinyl 100 White Vinyl 089 Red Vinyl
088  Burgundy Vinyl 084 Sienna 069 Fuchsia Vinyl 066 Latte Vinyl
061 Light Grey Vinyl 060 Dark Grey Vinyl 048 Plum Vinyl 046 Golden Brown Vinyl
040 Black Vinyl 034 Teak Vinyl 033 Hunter Green Vinyl 032 Cypress Vinyl
030 Royal Blue Vinyl 022 Peacock Vinyl 021 Beige Vinyl 020 Parchment Vinyl
012 Corn Silk Vinyl 009 Orange Vinyl 008 Scarlet Vinyl 007 Light Blue Vinyl
006 Coffee Vinyl 005 Chocolate Vinyl 004 Paprika Vinyl 002 Dark Khaki Vinyl
Vinyl Texture Detail Texture Detail Close up 001 Golden Yellow Vinyl

Selected Premium Upholstery Vinyls Shown Above

If you are doing critical color matching please request free vinyl upholstery samples.
Other materials are also available selections may affect cost and delivery time.
