Chrome Table Base Details

18 Inch Diameter Chromed Steel Table Base With 3 Inch Column Detail Chromed Steel Table Base Drawing

3" Chromed Steel Column With Chromed Steel Bottom. Adjustable levelers. 28 ¾" High Shown Above and Right.
4" Chromed Steel Columns Also Available...see below.
(Underside view of table base reinforcement detail also shown below)

Chrome steel bottoms available in 16" Diameter With 3" Chrome Columns.
Use with standard 1 ¼" thick table top
for sizes up to 24" X 24" or 24" diameter (Maximum)

Chrome steel bottoms available in 18" Diameter With 3" Chrome Columns.
Use with standard 1 ¼" thick table top
Recommended for 24" X 24" or 24" diameter
Base will work for sizes up to 30" X 30" or 30" diameter (Maximum)

Chrome steel bottoms available in 20" Diameter With 4" Chrome Columns.
Use with standard 1 ¼" thick table top
Recommended for 30" X 30" or 36" diameter (Maximum)

Chrome steel bottoms available in 24" Diameter With 4" Chrome Columns.
(Shown Below)

Use with standard 1 ¼" thick table top
Recommended for 36" X 36" or 40" diameter (Maximum)

18 Inch Diameter Chromed Steel Table Base With 3 Inch Column Detail

24 Inch Diameter Chromed Steel Table Base With 4 Inch Column Detail
Chrome Table Base - 24" Diameter With 4" Chrome Column

Chrome Table Base InstallationChrome Table Base Page SpacerChrome Table Base Installation
Chrome Table Base Page Spacer

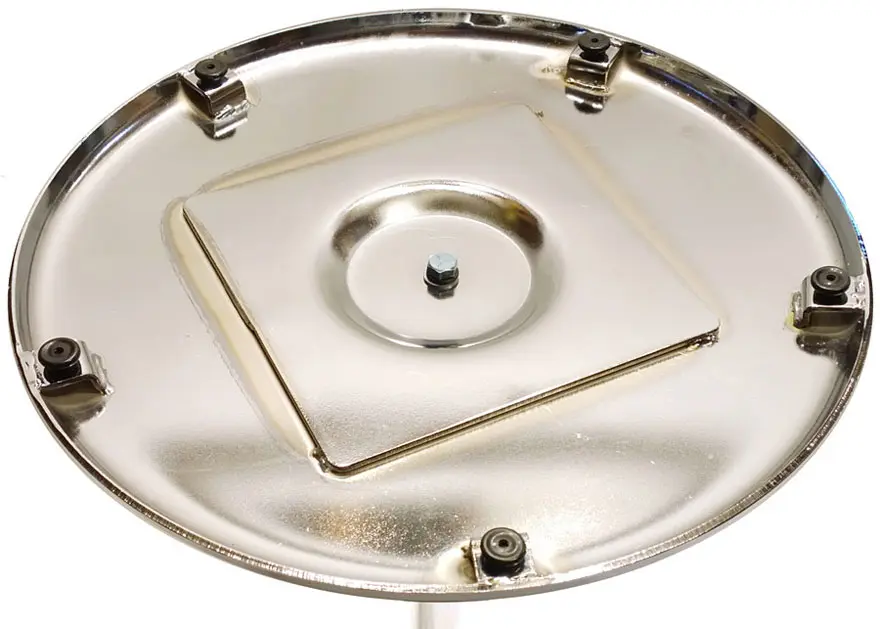

Underside View 24 Inch Diameter Chromed Steel Table Base
Table Base - 24" Diameter Underside View

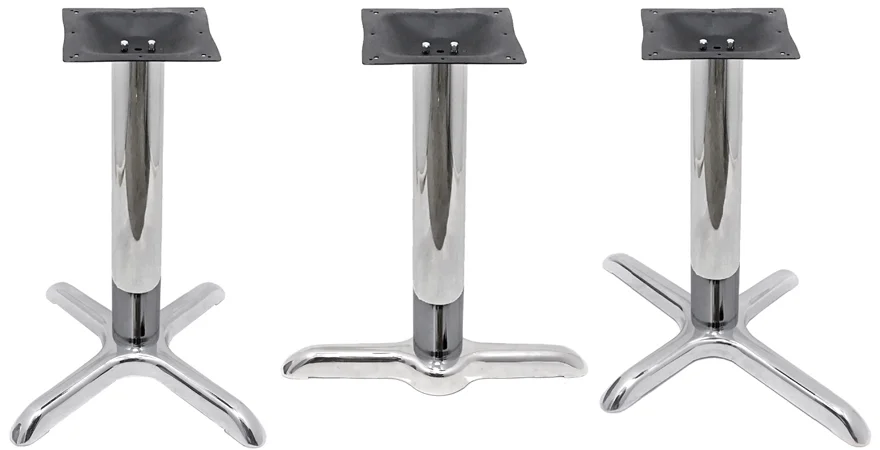

Square Chrome Table BaseSquare Chrome Table Bases and Rectangular Chrome Table Bases also AvailableRectangular Chrome Table Base
