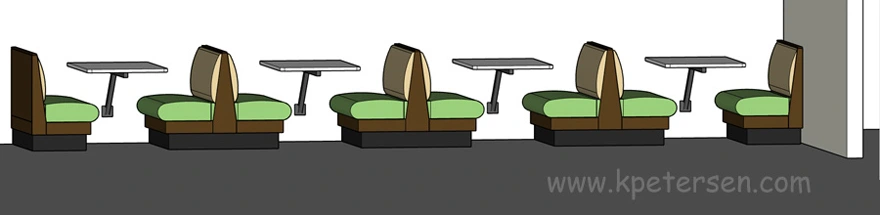

Wall Mounted Cantilever Table Supports

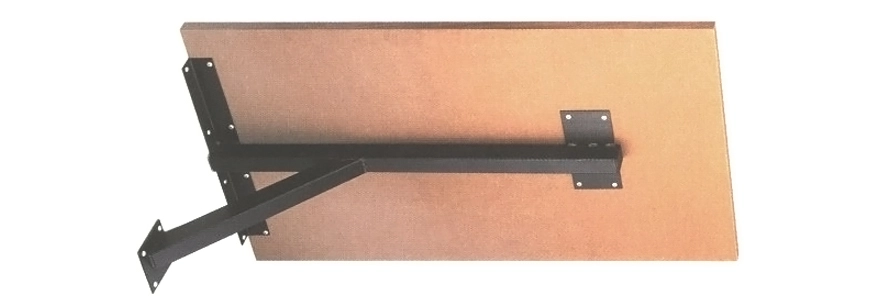

Restaurant booth table with cantilever support - Underside View

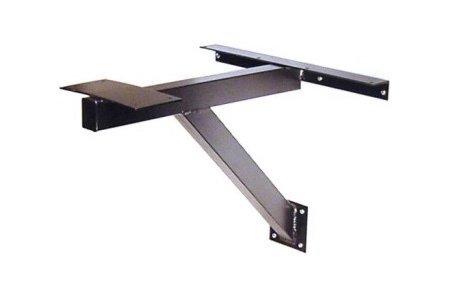

Cantilever Table Support 20 inch

Restaurant booth table with cantilever support - Underside View

20 Inch Cantilever Support

Steel tubing is 1 ½" X 2"
Angle iron is 1 ½" ( vertical ) X 2"( horizontal ) X 18" Long
Square steel wall mounting plate is 4" X 4"
Rectangular steel table mounting plate is 4" X 8"

Available in black.

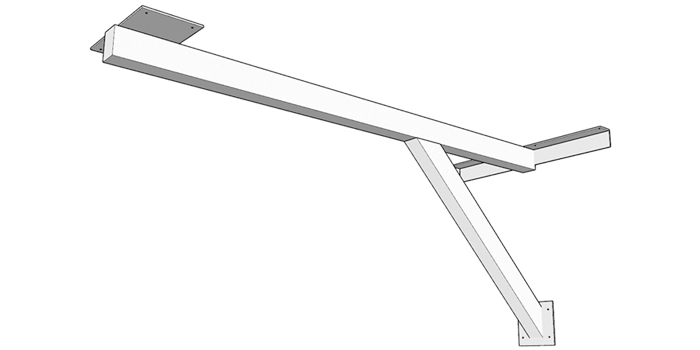

Cantilever Table Leg Drawing

Cantilever Table Support 20 inch Top View Detail
Click to see general pricing and other standard size table bases

Cantilever Support

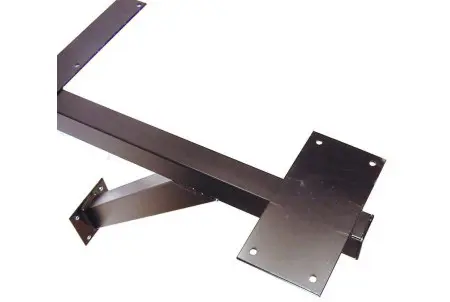

4" X 8" Table Mounting Plate Detail

20" Cantilever Table Base (for tables 24" to 30" Long)
33" Cantilever Table Base (for tables 36" to 44" Long)
42" Cantilever Table Base (for tables 46" to 54" Long)
48" Cantilever Table Base (for tables 54" to 60" Long)

Cantilever Table Support Suggested Wall Reinforcement Detail

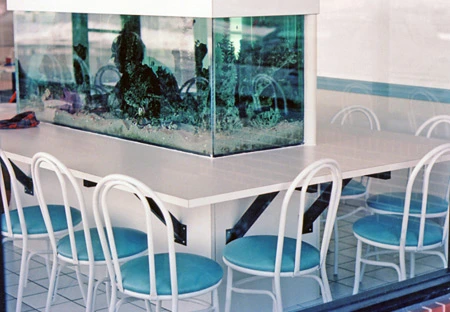

Wall Mounted Cantilever Table Support Installation

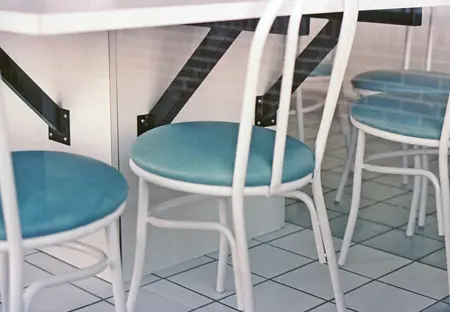

Wall Mounted Cantilever Table Support Special Purpose Installation

Wall Mounted Cantilever Table Support Detail
Wall Mounted Cantilever Table Support Detail
