School House Jury Base
Bolt Down Chairs

Our Schoolhouse Swivel Chairs are made of OAK wood species in the United States.

Oak Schoolhouse Bolt Down Swivel Side Chair Front - Side View Oak Schoolhouse Bolt Down Swivel Side Chair Front View Oak Schoolhouse Bolt Down Swivel Side Chair Rear View Oak Schoolhouse Bolt Down Swivel Side Chair Overhead Front View
# 5303BD Bolt Down School House Swivel Side Chair

Overall Dimensions 21 1/2" Wide X 21 1/2" Deep X 33" To 36 3/4" High
Seat: W. 18 1/4" X 16 3/4" Deep
Seat Height: Approx. 18 1/2"
Approx. 36 lbs.

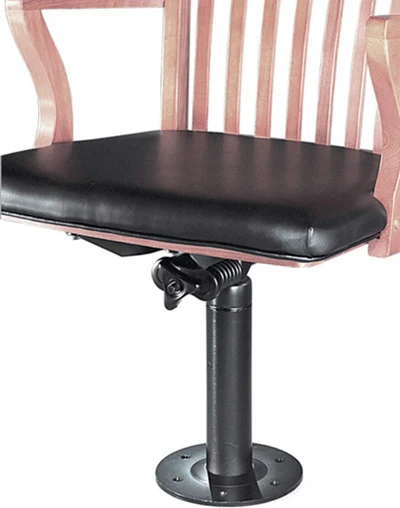

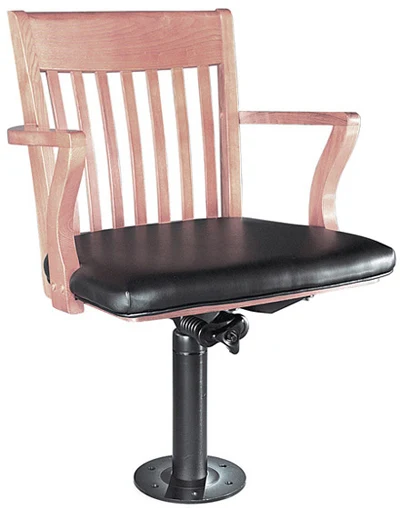

Oak Schoolhouse Bolt Down Swivel Arm Chair - Upholstered Oak Schoolhouse Bolt Down Swivel Arm Chair - Base Detail
# 5301BD Bolt Down School House Swivel Arm Chair

( Upholstery options available for larger orders )
Overall Dimensions 23 1/2" Wide X 21 1/2" Deep X 33" To 36 3/4" High
Seat: W. 19 1/2" X 17 1/2" Deep
Arm Height: 27 1/2"
Seat Height: Approx. 25 1/2" To 28 3/4"
Approx. 39 lbs.

Bolt down base consists of an all plate steel flange base bottom with a diameter of 8".
Base bottom has six equally spaced bolt anchor holes 5/16" diameter.
The steel tube assembly consists of a 2 1/2" diameter drawn steel tube.

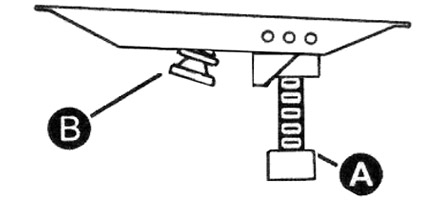

A. Seat Height - Turn handwheel clockwise to raise seat
Oak Schoolhouse Swivel Chair Swivel and Adjustment Drawing

Our Schoolhouse Chairs are made of OAK wood species in the United States.
The seat is made from 1 1/4" lumber (finished 1"). The seat is saddled and also rounded in front for maximum comfort.
The top cross back is made from 1" lumber, steam bent and rounded on the front edge. The lower cross back is also made from 1" lumber, steam bent and double doweled to the back posts with spiral dowels.
The vertical form-fitting slats are finished 1" X 3/8" and mortised into the top and bottom cross backs. The front posts (legs) are made from 2" lumber, tapered from the seat rail to the floor.
The back posts (legs) are steam bent and are made from 1 1/4" lumber. The stretchers are of H type construction consisting of two side stretchers and one cross stretcher from 1" lumber.
One extra 1" stretcher is chucked and glued to the back posts several inches below the seat. The School House Side Chairs also have steam bent braces that are glued and screwed to the seat and back posts for added strength.
The chair frame is further reinforced with corner blocks which are glued and screwed to the seat rails. All corners and edges of the chair are rounded.

Oak Schoolhouse Swivel Jury Base Chairs Available
In Natural Clear On Oak, Golden Oak, Medium Oak, Walnut On Oak,
Mahogany On Oak, and Cherry Stain On Oak

Natural Clear Finish On Oak Wood Species Golden Oak Stain On Oak Wood Species Medium Oak Stain On Oak Wood Species Walnut Stain On Oak Wood Species
Mahogany Stain On Oak Wood Species Cherry Stain On Oak Wood Species

Oak Schoolhouse Chairs Also Available Finished In Premium Opaque Solid Colors
Special Solid Color Sections For Oak Chairs
If you are doing critical color matching please request free wood stain samples.
