Floor Mounted
Counter Stool Pedestals

Floor mounted seat support pedestal assemblies feature heavy duty, commercial construction.
Seat support pedestal assemblies are available in 21" and 27" ( For 24" and 30" Overall Stool Heights ) and ship complete with swivel mechanisms ( specify flat or slant swivels. )
and 8" Diameter Steel Escutcheon Cover.

( A built-in step or footrail at the counter is recommended for both the 24" and 30" seat heights. )
Please request a quotation if you are considering a large order.

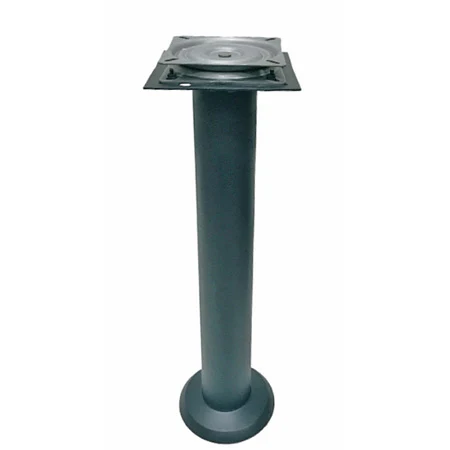

Bolt Down Counter Stool Pedestal Base 4 Inch With Swivel Bolt Down Counter Stool Pedestal Base Bottom And Escutcheon Cover Detail
#6100 Quick Ship Floor Mounted Pedestal Stool Support Base And Escutcheon Cover Detail.
Be sure to specify Flat or Tilted Swivels ( Used for Seats With Backrests )
Black Finish Only At This Time.

#6100 Pedestal Base With Swivel ( Flat and Tilted Swivels ) Pricing:
27" Floor To Top Of Swivel Height: 2 - 6 $121 each | 7 - 10 $116 each | 11 + Call for quantity quote!
21" Floor To Top Of Swivel Height: 2 - 6 $111 each | 7 - 10 $107 each | 11 + Call for quantity quote!


Bolt-Down Soda Fountain Base Floor Attachment Drawing
Base Floor Attachment Drawing.
220 RSI Soda Fountain Counter Stool Spacing ISO View 220 RSI Soda Fountain Counter Stool Minimum Spacing

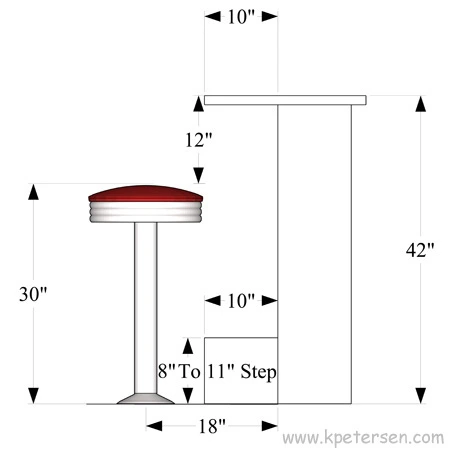

Counter Stool 24 Inch Seat Height 220 RSI Soda Fountain Counter Stool 30 Inch Seat Height
Trapezoid Ladderback Soda Fountain Counter Stool Recommended Spacing
 For Counter Stool Seats With Backrests We Suggest WIDER Center To Center Dimensions Of 30" - 32".
Always adjust to your specific conditions.
