#2023RSI Tubular Soda Fountain Stool Budget Soda Fountain Stool Lady

THE ONLY PLACE TO SIT in the 21st Century Soda Fountain. Our floor mounted Stacked Steel Tube seat counter stools feature heavy duty, commercial, made in U.S.A. construction.
The fountain stools below are made in standard seat heights of approx. 18", 24" and 30".

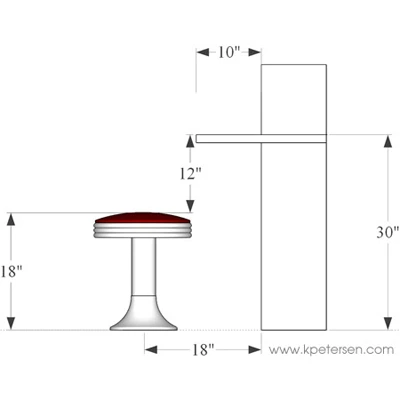

The 18" seat height is for 30" table height. The 24" seat height is for counters 36" high. ( A built-in step or footrail at the counter is recommended for the 24" seat height stool )

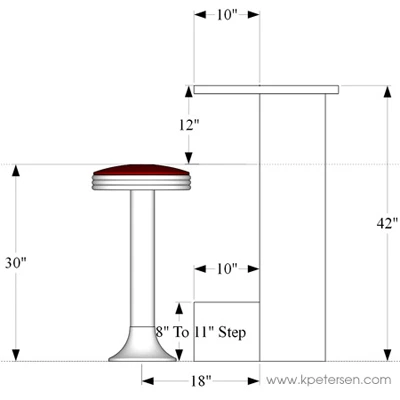

The 30" seat height is for standard bar height which is 42".
Please request a quotation if you are considering a large order.

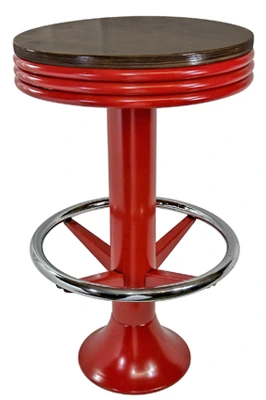

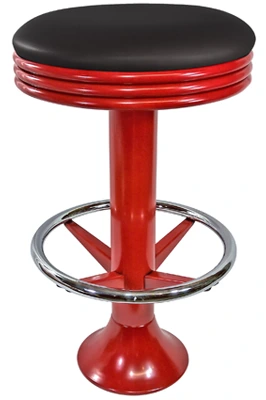

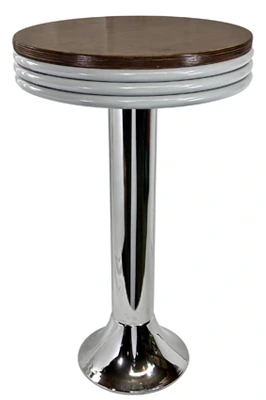

2023RSI Soda Fountain Bolt Down Counter Stool Chrome Base, Wood Seat 2023RSI Soda Fountain Bolt Down Counter Stool With Footrest, Upholstered Seat 2023RSI Soda Fountain Bolt Down Counter Stool With Footrest,, Wood Seat

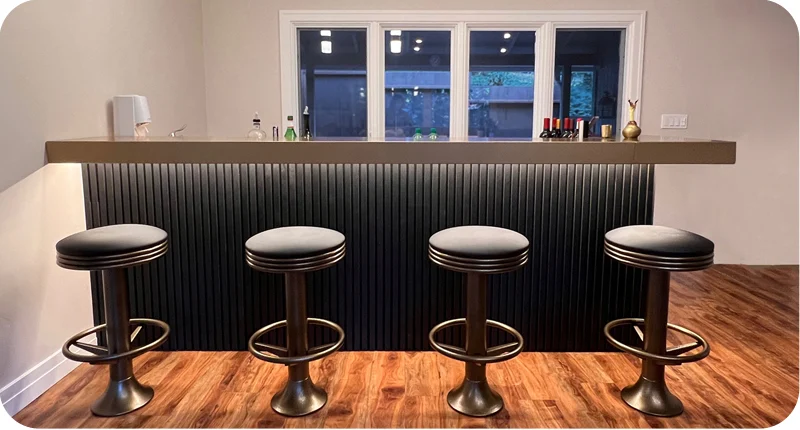

2023RSI Soda Fountain Bolt Down Counter Stool Installation Photo

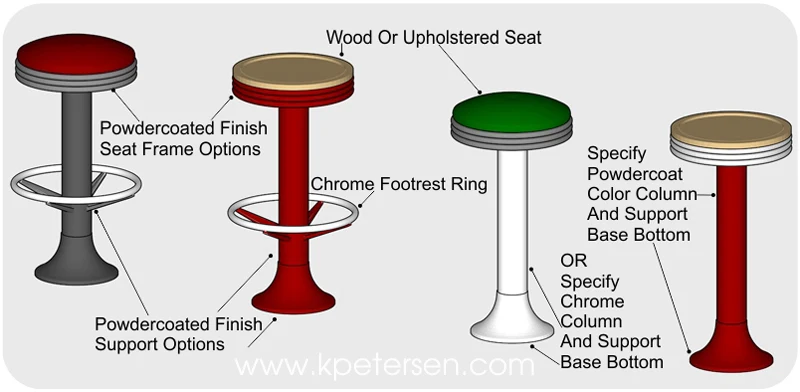

2023RSI Soda Fountain Bolt Down Counter Stools Drawing

#2023rsi Stacked Steel Tube Seat Soda Fountain Stool
Seat is 15" Diameter - Upholstered Pad ( 2 1/2" Thick ) Or Wood ( 3/4" Thick )
Steel Column is 3 1/2" Diameter
Steel Bell Bottom is 9" Diameter
( Specify floor attachment anchors as shown below )
Stool is equipped with a revolving swivel.

16" Diameter ( All Welded ) Chrome Footrest Option Available.

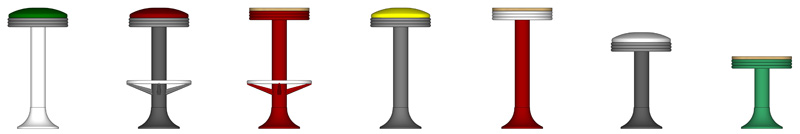

2023RSI Soda Fountain Bolt Down Counter Stools Base And Seat Frame Color Combinations
STOOL BASE And SEAT FRAME Finishes Available
In Many Standard Colors And Combinations

Standard Seat Heights 18", 24" and 30"
Custom Heights ( Under 30" ) Available

Upholstered Seat Version Priced Around $222 Each.

Wood Seat Version Priced Around $273 Each.

Optional ( All Welded ) Chrome Footrest Adds $122

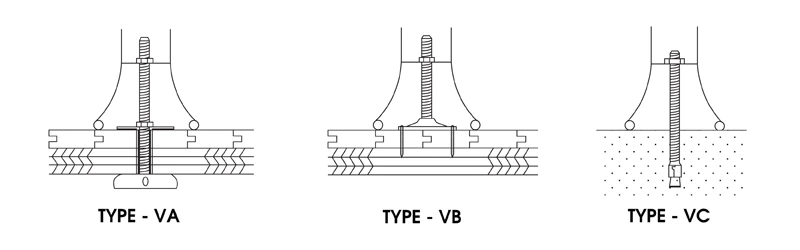

 Bolt-Down Counter Stool Floor Attachment Drawings
Floor Attachments Drawings.

Use Type - VA Floor Attachment to secure soda fountain stool through a wooden floor ( Floor not to exceed 5″ in thickness )
by means of a toggle bolt.

Use Type - VB Floor Attachment to secure soda fountain stool to a wooden floor
by means of an anchor plate.

Use Type - VC Floor Attachment to secure fountain stool into a composite/concrete floor by means of an expansion shell.

A wrench is included to make the final floor attachment of the stool base to the specified floor attachment device.
Note that on very large jobs additional wrenches may need to be purchased,


Standard Wood Seat Finishes*
Natural Clear Mahogany Stain Walnut Stain
Cherry Stain Dark Mahogany Stain Black Stain Black Opaque

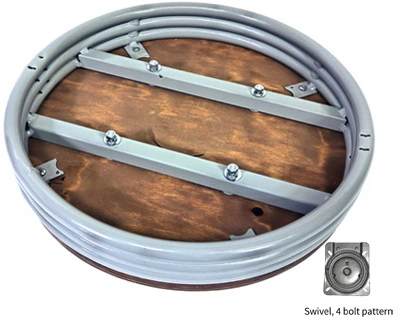

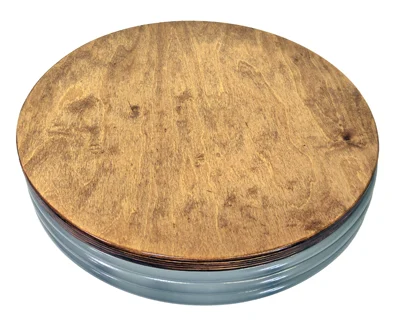

Soda Fountain Wood Seat Detail Soda Fountain Wood Seat Underside Detail
 Wood Seat And Wood Seat Underside Details

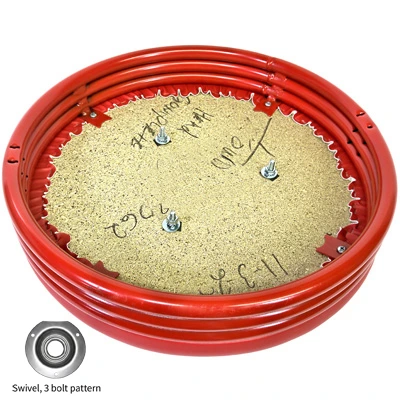

Soda Fountain Upholstered Seat Underside Detail Soda Fountain Footrest Underside Detail
 Upholstered Seat And All Welded Footrest Underside Details

Many upholstery material selections available
If you are doing critical color matching please request free vinyl upholstery samples.

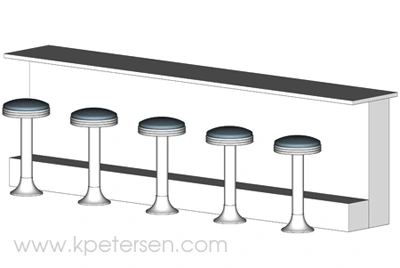

2023 RSI Soda Fountain Counter Stool Spacing ISO View 220 RSI Soda Fountain Counter Stool Minimum Spacing
( We Suggest Increasing Center To Center Dimensions To 28" When Using 16" Diam. Footrests )

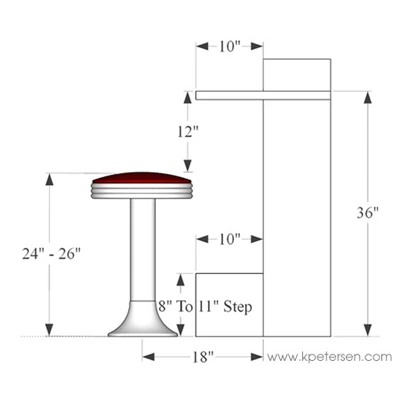

2023 RSI Soda Fountain Counter Stool 18 Inch Seat Height 2023 RSI Soda Fountain Counter Stool 24 Inch Seat Height

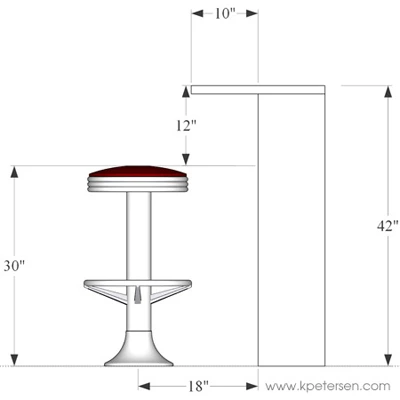

220 RSI Soda Fountain Counter Stool 30 Inch Seat Height 220 RSI Soda Fountain Counter Stool 30 Inch Seat Height with Footrest

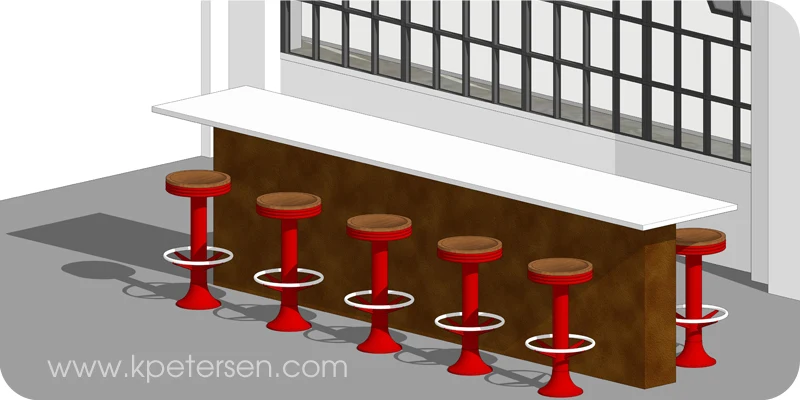

2023RSI Soda Fountain Bolt Down Counter Stool Installation Drawing
See The 28 Second#2023rsi Stacked Steel Tube Seat Soda Fountain Stool Video
#2023rsi Stacked Steel Tube Seat Soda Fountain Stool
