Budget Soda Fountain Counter Stool
Layout Dimensions and Footrest Suggestions

Built in counter stool footrest options and layout dimension details. Soda fountain counter stool
seat height to counter height ratio. Built in steps and foot rails as alternatives to integral footrests on counter stools.

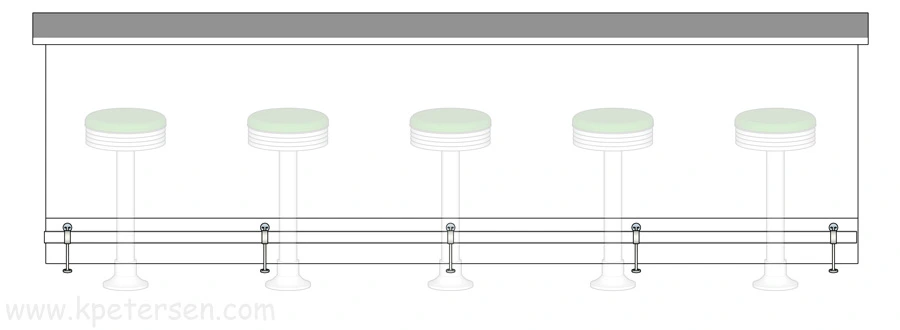

Budget Bolt Down Soda Fountain Counter Stools Line Up
Counter Stools Install On Minimum 26 inch Centers Counter Stool With Step Built Into Counter

Pancake House Counter Stools 26 Inch Seat Height - No Footrest
Pancake House Counter Stools With Backrest Install On 31 1/2 - 32 inch Centers Pancake House Counter Stool with Backrest At Counter With Step

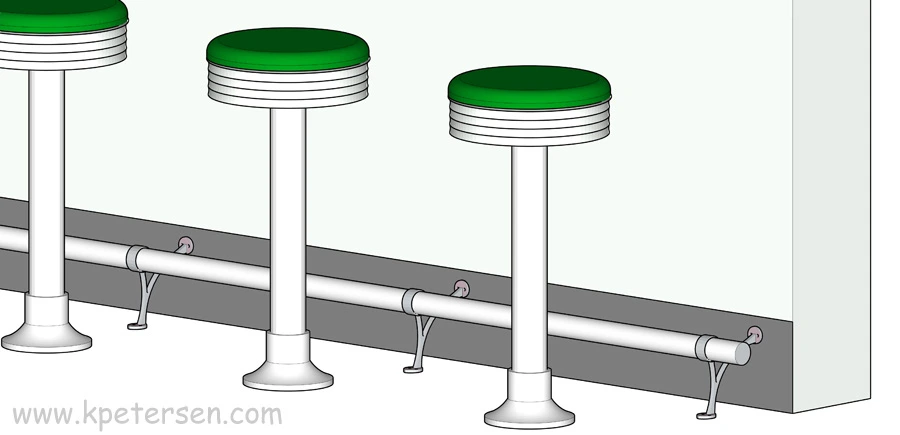

Bolt Down Counter Stools With Built-In Footrest Drawing
Bolt Down Counter Stools With Built-In Footrest Detail Drawing

General Bar, Aisle, and Back Bar Dimensions And Suggestions For Reference
* Counter stool seats with backs can vary substantially in width and depth. Always confirm proper support post location before final floor attachment.
These drawings and photos are installation suggestions. They are not intended as substitutes for architectural drawings. Drawings are submitted as a confidential disclosure. All rights to reproduce them are expressly reserved. Drawings are not to be used in any way detrimental to Petersen Furniture interests. It is the customer's responsibility to verify critical dimensions and securely and safely perform installation.

Bar Layout Dimensions Human Factors
Bar Layout Dimensions - Human Factors
