Wood Back Fast Food Counter Stools

504CST Wood Back Fast Food Counter Stools

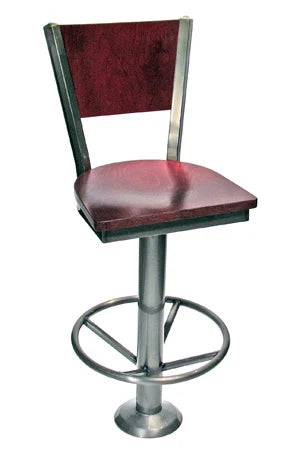

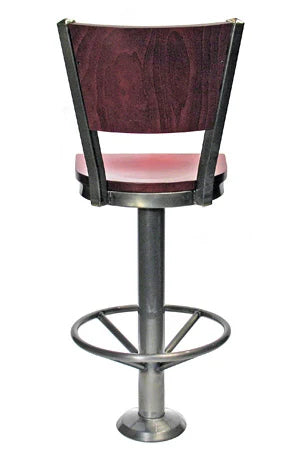

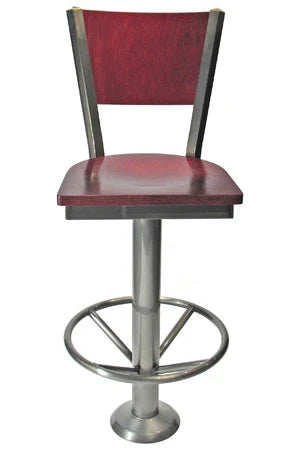

This is a thoughtfully designed and engineered steel with wood backrest counter stool with deluxe details like steel finial caps rather than the usual plastic.

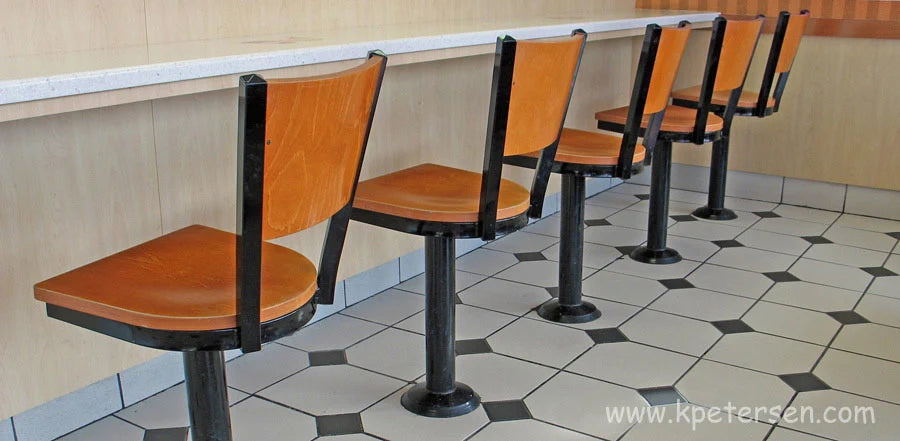

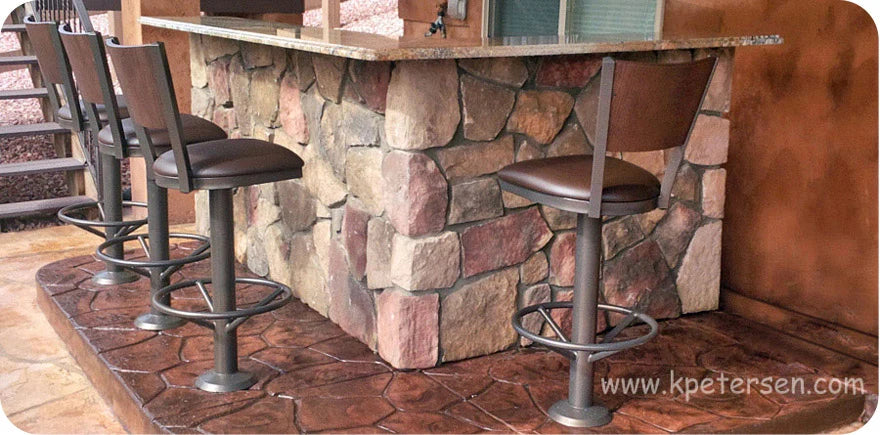

Our floor mounted Wood Back design counter stools feature heavy duty made in U.S.A. commercial construction.

Available with upholstered and beech veneer chair seats. The fountain stools below are made in standard seat heights of approx. 18", 25" and 30".

The 18" seat height is for 30" table height. The 25" seat height is for counters 36" high. ( A built-in step or footrail at the counter is recommended for the 25" seat height stool). The 30" seat height is for standard bar height which is 42".

Available with Upholstered Seats and Beech Veneer Seats

Seat is approx. 17" Wide X 16" Deep
Steel Column is 3" Diameter
Steel Bottom is 6 1/2" Diameter X 1/4" Thick with four 1/2" holes for floor attachment.
( Floor attachment anchors not provided )
Stool is equipped with a spring return swivel.

8" Diameter Steel Escutcheon Cover Included.
19" Diameter Footrest option available.

Stool base and chair head frame finish available in many Standard Colors
including Clear Coat finish which reveals welding and burnishing marks on the steel frame.


Standard Wood Seat Finishes



504CST-U Wood Back Standard Upholstered Seat




Many upholstery material selections available

If you are doing critical color matching please request free vinyl upholstery samples.

504CST-W Wood Back Beech Veneer Seat





Specify 18", 25", 30" Seat Height. Upholstered Seats May Add Slightly To Specified Height.

Counter Stool Welded 19" Diam. Footrest and 8" Diam. Sliding Escutcheon Cover Details.

Base Floor Attachment Drawing



We Suggest Center To Center Dimensions Of 32" Especially When Using 19" Diam. Footrests
